Kafka, RabbitMQ, and Event-Driven Architecture (EDA) IBMQ

PHASE 1 – Foundations of Event-Driven Architecture (EDA)

1.1 What is Event-Driven Architecture (EDA)

1.1.1 Definition and Principles

Definition:
Event-Driven Architecture is a software design paradigm in which systems communicate by producing and consuming events rather than invoking synchronous requests. An event is a record of something that happened, such as OrderPlaced, PaymentProcessed, or TemperatureExceeded.

Core Principles:

1. Events as first-class citizens: Everything revolves around events.
2. Decoupling of producers and consumers: Producers don’t know who consumes the events.
3. Asynchronous communication: Events are published and processed asynchronously.
4. Event Channels / Brokers: Events are transported via middleware (Kafka, RabbitMQ, etc.) rather than direct API calls.

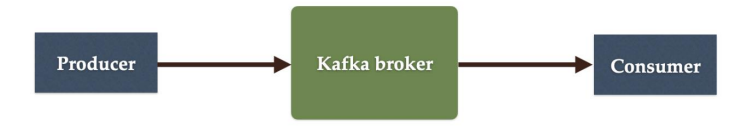

Flow:

Example:
In an e-commerce system:

• OrderService publishes OrderPlaced events
• InventoryService and BillingService subscribe to the event independently

Impact:

• Loosely coupled systems
• Scalability by adding more consumers
• Real-time processing without blocking producers

1.1.2 Benefits of EDA

Challenges:

• Complex debugging and monitoring
• Event ordering and idempotency
• Potential data consistency issues

Solution Patterns:

• Event Sourcing: Keep a log of events as a source of truth
• CQRS (Command Query Responsibility Segregation): Separate read/write models
• Dead Letter Queues (DLQ): Handle failed event processing
• Idempotent Consumers: Ensure consuming same event multiple times does not cause issues

1.1.3 Event-Driven vs Request-Driven Systems

Impact:
EDA enables resilient, scalable microservices architectures, while request-driven systems are simpler but can become bottlenecks under high load.

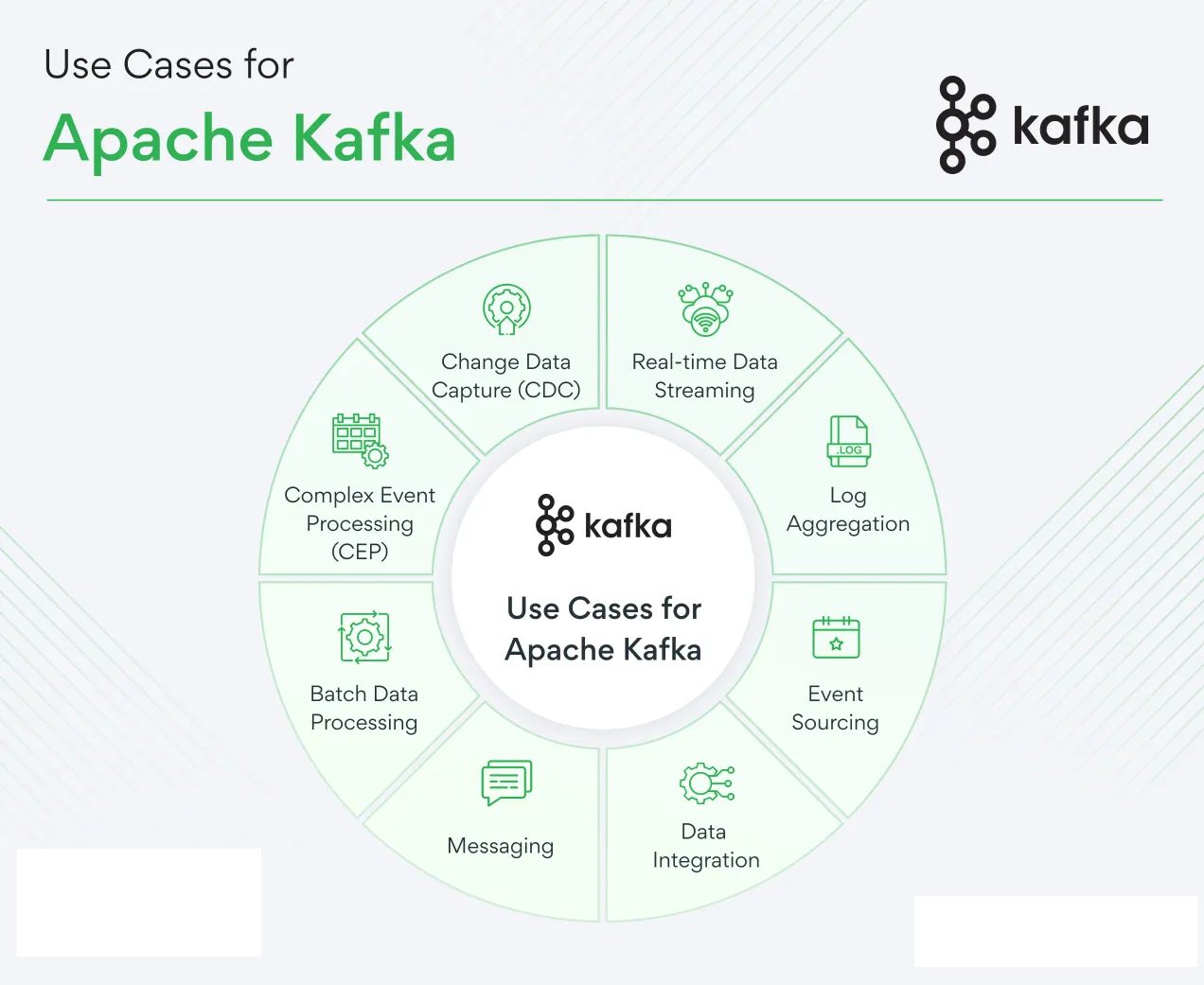

1.1.4 Use Cases

1. Chat Applications:
   • Messages are events: MessageSent
   • Multiple consumers: notification service, analytics, message store

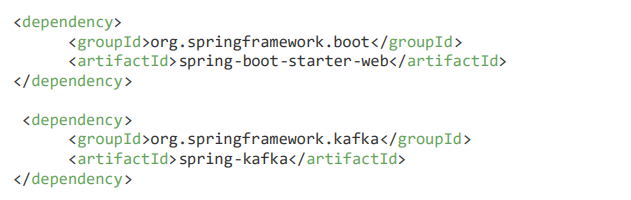

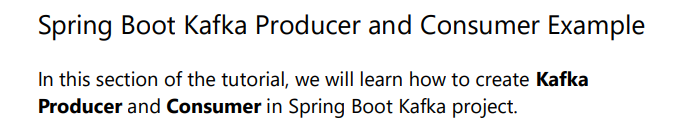

   • Spring Boot + Kafka example:

2. Order Management Systems (E-commerce):
   • Event: OrderPlaced → triggers PaymentService, InventoryService, ShippingService
   • Real-time, scalable, loosely coupled
3. IoT & Sensor Data:
   • Event: TemperatureSensorRead
   • Multiple consumers: alerting, dashboard, analytics
4. Analytics / BI Pipelines:
   • Event: UserClickedAd
   • Consumers: real-time dashboards, machine learning pipelines

Advanced Flow – How I Solved a Complex Real-Time Use Case

Scenario:
At my previous project, we had a high-traffic e-commerce platform. During sales, synchronous payment and inventory checks caused latency spikes and occasional checkout failures.

EDA Solution:

1. Producer: OrderService publishes OrderPlaced events to Kafka.
2. Consumers:
   • InventoryService checks stock asynchronously and updates inventory DB
   • PaymentService processes payment asynchronously
   • NotificationService sends email/SMS
3. Idempotency: Consumers used order IDs to ensure no duplicate processing.
4. DLQ: Failed events sent to dead-letter topic for retry

Result:

• Checkout throughput improved by 4x during peak sales
• No synchronous blocking → system resilient to temporary service failures
• Easier to extend: added analytics microservice without changing order service

EDA Implementation in Spring Boot – Patterns

1. Event Publisher (Producer):

2. Event Listener (Consumer):

3. Error Handling / DLQ:

Why EDA:

• Decouples microservices, improves scalability and resilience.

Impact:

• Reduced synchronous failures, supports high-throughput pipelines.

Benefits:

• Loose coupling, extensibility, asynchronous processing.

Problems & Challenges:

• Debugging is harder, ordering issues, idempotency.

Solutions:

• Event sourcing, DLQ, idempotent consumers, monitoring with metrics

Spring Boot Integration:

• Kafka/RabbitMQ event producer and consumer
• Retry & DLQ mechanisms
• Real-time, complex use case implementations

1.2 Core Concepts of EDA

1.2.1 Events

Definition:
An event is a record of something that happened in the system.
It represents a state change or an action.

Key Characteristics:

• Immutable: Once created, cannot be changed
• Timestamped: Records when it occurred
• Contains minimal info: Event type + payload

Example Event:

Why Events:

• Decouples producers and consumers
• Enables asynchronous processing
• Supports audit trails, replay, and analytics

Impact / Benefits:

• Supports scalability – multiple consumers can react to the same event independently
• Provides resilience – temporary failures don’t block producers
• Enables real-time systems – streaming analytics, notifications, IoT processing

Challenges:

• Ordering guarantees
• Event schema evolution
• Idempotency

Solutions:

• Partitioning (Kafka) for ordering
• Versioned schemas (Avro, Protobuf)
• Idempotent consumers

Spring Boot Example – Event Object:

Real-Time Use Case:

• In an IoT platform, TemperatureExceeded events are published by sensors.
• Multiple consumers: alerting system, analytics dashboard, logging service.
• Each consumer reacts independently without blocking the others.

1.2.2 Producers

Definition:
A producer is any service or system that creates and sends events to a broker or event bus.

Key Points:

• Responsible for publishing events
• Usually asynchronous
• Should not depend on consumers

Types of Producers:

• Microservices (OrderService, PaymentService)
• IoT devices (temperature, GPS)
• UI / Frontend apps

Best Practices:

• Keep payload small (avoid huge objects)
• Ensure idempotency for retries
• Handle failures with retries or DLQs

Spring Boot Example – Producer:

Real-Time Scenario:

• High-traffic e-commerce system: OrderService publishes OrderPlaced events.
• The producer does not wait for inventory or payment processing → non-blocking flow.

1.2.3 Consumers

Definition:
A consumer subscribes to events and reacts to them, performing business logic.

Key Points:

• Can be synchronous or asynchronous depending on system design

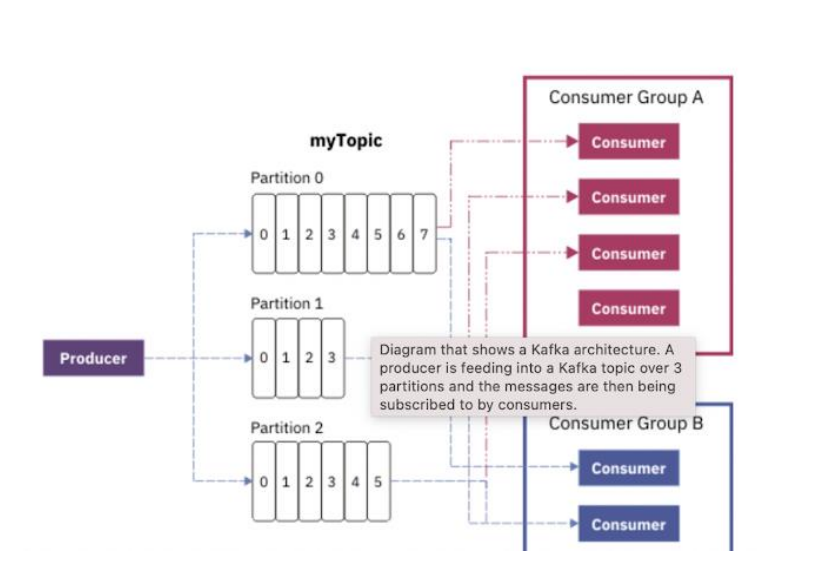

• Can be grouped (Kafka consumer groups) for scaling
• Should handle duplicate events (idempotent)

Types of Consumers:

• Microservices reacting to business events
• Analytics services processing streams
• Notification services sending emails/SMS

Spring Boot Example – Consumer:

Challenges & Solutions:

• Message loss: Use persistent brokers + ack
• Processing failures: DLQ, retries
• Ordering issues: Partition-based consumption

Real-Time Scenario:

• During Black Friday, multiple OrderPlaced events come simultaneously.
• InventoryService consumer scales horizontally, each partition assigned to a consumer → avoids contention and improves throughput.

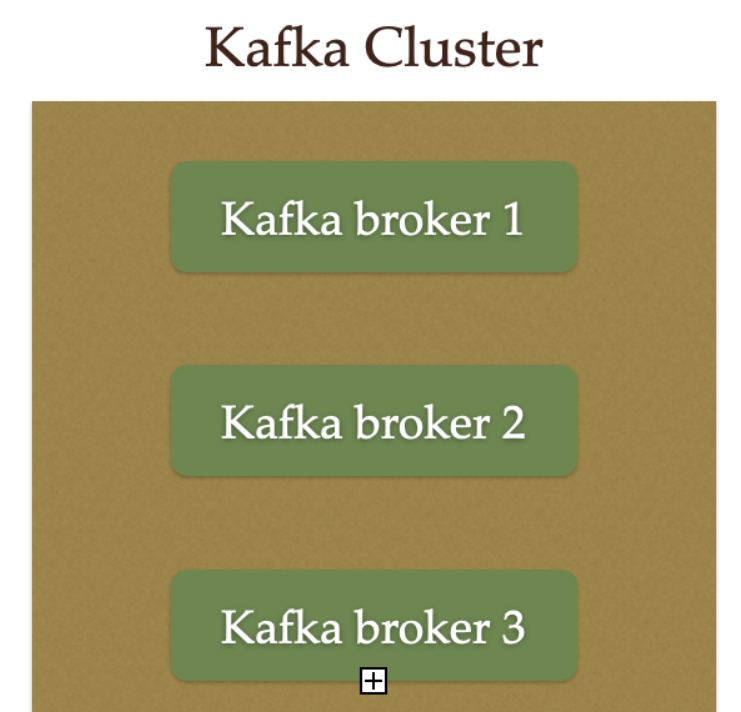

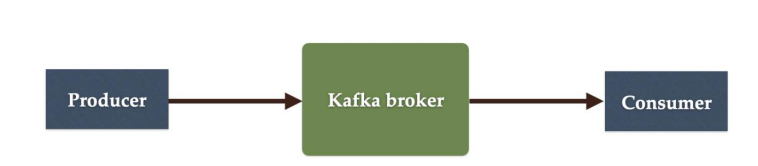

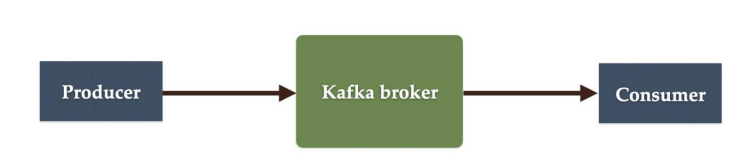

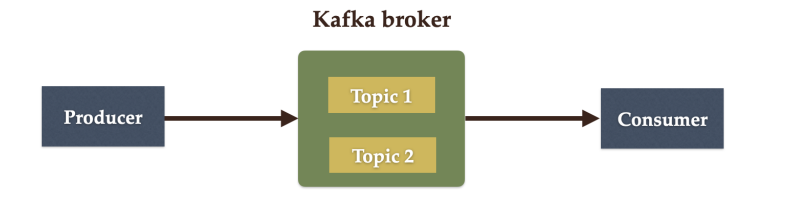

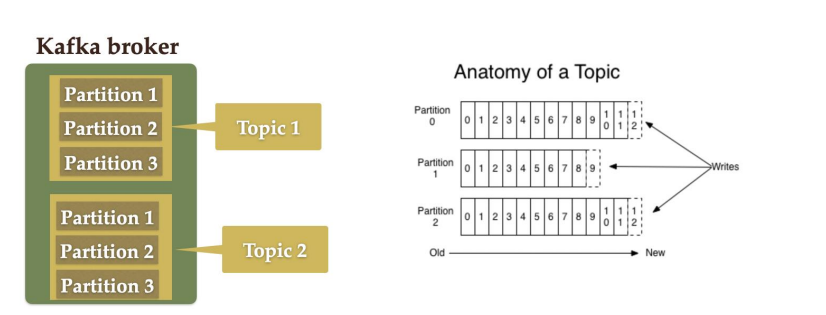

1.2.4 Brokers (Kafka, RabbitMQ, Cloud Brokers)

Definition:
A broker is middleware that receives events from producers, stores them temporarily, and delivers them to consumers.

Popular Brokers:

• Apache Kafka: High throughput, distributed, partitions, replication
• RabbitMQ: Supports complex routing, queues, exchange types
• Cloud brokers: AWS SNS/SQS, Google Pub/Sub, Azure Event Hub

Key Responsibilities:

• Store events reliably
• Deliver events to multiple consumers
• Manage offsets and delivery semantics

Comparison Table:

Spring Boot Kafka Example – Broker Interaction:

Real-Time Scenario:

• E-commerce system uses Kafka as broker
• Partitioning ensures high concurrency and ordered processing per customer
• DLQs handle failures without losing events

1.2.5 Event Bus & Event Store

Event Bus:

• Mechanism for transporting events from producers to consumers
• Examples: Kafka topics, RabbitMQ exchanges
• Decouples communication → producers and consumers unaware of each other

Event Store:

• Persistent storage of events for replay, auditing, or rebuilding state
• Supports Event Sourcing patterns
• Example: Kafka retains logs → can rebuild aggregates

Benefits:

• Traceability → replay events to recover lost state
• Debugging → see event flow history
• Scalability → multiple consumers can replay events independently

Spring Boot Example – Using Event Store (Kafka):

Real-Time Use Case:

• IoT platform stores all sensor events in Kafka (event store)
• New analytics service starts → replays historical events to reconstruct state
• Ensures late subscribers can catch up

Expert-Level Insights:

• Always design producers to be unaware of consumers
• Use brokers with durable storage to avoid message loss
• Implement idempotent consumers to handle retries/failures
• Event store is the backbone of Event Sourcing + Replay
• Scaling is achieved by partitions and consumer groups

1.3 Event Types

1.3.1 Domain Events

Definition:
A Domain Event represents a state change within a single business domain. It reflects something significant happening in the domain.

Characteristics:

• Specific to the domain (e.g., Order, Payment)
• Expressed in past tense: OrderPlaced, PaymentCompleted
• Immutable

Impact & Benefits:

• Decouples domain services
• Enables audit trails and replay
• Supports reactive workflows

Challenges:

• Requires strong event schema design
• Versioning changes can break consumers

Spring Boot Example – Domain Event:

Real-Time Use Case:

• In an e-commerce app, OrderPlacedEvent triggers:
  • Inventory update (InventoryService)
  • Payment processing (PaymentService)
  • Analytics updates (AnalyticsService)
• All services are decoupled and react asynchronously.

1.3.2 Integration Events

Definition:
Integration Events are events that cross system boundaries, usually between different microservices or external systems.

Characteristics:

• Often used in multi-service or multi-organization environments
• Ensures loose coupling between systems

Example:

• PaymentProcessed event from PaymentService consumed by OrderService and AccountingService

Challenges:

• Network failures
• Message delivery guarantees
• Schema evolution

Solutions:

• Use message brokers with persistent delivery (Kafka, RabbitMQ)
• Implement retry and DLQ mechanisms

Spring Boot + Kafka Example:

1.3.3 Business Events

Definition:
Business Events represent important occurrences from a business perspective, often triggering business processes.

Example:

• CustomerSubscribed → triggers welcome email, onboarding workflow
• InventoryLow → triggers replenishment workflow

Benefits:

• Aligns system events with business KPIs
• Enables event-driven automation

Real-Time Use Case:

• Customer subscribes → Event triggers:
  • Email service → send welcome email
  • CRM → update customer profile
  • Analytics → track subscription trends

1.3.4 System Events

Definition:
System Events represent technical or infrastructure-level occurrences rather than business domain changes.

Examples:

• ServiceStarted, ServiceStopped
• DatabaseConnectionLost
• HighCPUUsageDetected

Use Cases:

• Monitoring & alerting
• Auto-scaling decisions
• Observability and DevOps dashboards

Spring Boot Example – System Event Publisher:

Impact:

• Helps detect system health issues
• Enables proactive remediation in distributed systems

1.4 Event Delivery Patterns

1.4.1 Event Notification

Definition:
Event Notification pattern delivers a notification that something happened, without sending the full state.

Characteristics:

• Minimal payload
• Consumer fetches state if needed
• Lightweight and asynchronous

Example:

• OrderPlacedNotification → consumer calls OrderService to get full order details

Challenges:

• Consumers may need extra calls → potential latency
• Risk of data inconsistency

Solution:

• Use event-carried state when latency or reliability is critical
• Use caching to reduce extra calls

Spring Boot Example:

1.4.2 Event-Carried State Transfer

Definition:
Event carries full state of the entity so consumer can process without calling producer.

Characteristics:

• Larger payload than notification
• Consumers do not need synchronous API calls
• Useful for event sourcing and replay

Example:

• OrderPlacedEvent contains full order data, items, totals

Benefits:

• Reduces network calls
• Consumer can process independently
• Enables historical replay

Spring Boot Example:

Impact:

• Essential for scalable, decoupled microservices
• Reduces tight coupling between producer and consumer

1.5 Event Flow Patterns

1.5.1 Point-to-Point

Definition:

• Single producer → single consumer
• Consumer exclusively processes events

Use Case:

• Order fulfillment system: OrderPlaced → InventoryService

Pros:

• Simple, direct
• Easy to debug

Cons:

• Not scalable for multiple consumers

1.5.2 Pub/Sub (Publish/Subscribe)

Definition:

• Producer publishes → multiple subscribers consume
• All consumers receive a copy of event

Use Case:

• OrderPlaced event triggers InventoryService, PaymentService, AnalyticsService

Spring Boot Example:

Benefits:

• Decouples producer and multiple consumers
• Supports horizontal scaling

1.5.3 Fan-Out

Definition:

• Single event → multiple consumers receive and process independently
• Often implemented using Pub/Sub with multiple queues

Example:

• NewUserRegistered → EmailService, AnalyticsService, CRMService

Impact:

• High parallelism
• Allows services to scale independently

1.5.4 Fan-In

Definition:

• Multiple producers → single consumer aggregates events
• Used for consolidation or batch processing

Example:

• SensorReading from multiple IoT devices → AnalyticsService aggregates readings for dashboard

Spring Boot Example:

Impact:

• Efficient aggregation
• Reduces downstream load
• Supports analytics or reporting pipelines

Summary – Event Patterns

Key Takeaways:

• Use Point-to-Point for exclusive processing
• Use Pub/Sub / Fan-Out for decoupled multi-service reactions
• Use Fan-In for aggregation or batch processing
• Decide Event Notification vs Event-Carried State based on latency, payload size, and decoupling requirements

 PHASE 2 – Messaging & Communication Patterns

2.1 Messaging Components

Messaging is the foundation of event-driven systems. It allows asynchronous, decoupled communication between microservices.

Key components include:

2.1.1 Publisher & Subscriber

Publisher (Producer):

• Service that creates and sends messages/events to a messaging system.
• Can be a microservice, application, or even IoT device.
• Asynchronous – it doesn’t wait for the consumer to process.

Subscriber (Consumer):

• Service that receives and processes messages/events.
• Can scale horizontally to handle more messages.
• Can implement idempotency to safely handle duplicates.

Benefits:

• Loose coupling – publishers don’t know who consumes messages.
• Scalability – multiple subscribers can process messages independently.
• Resilience – failures in subscriber don’t block publisher.

Challenges:

• Handling message loss or duplication.
• Ordering issues.
• Managing consumer lag in high-throughput systems.

Spring Boot Example:

Publisher (Kafka):

Subscriber (Kafka):

Real-Time Scenario:

• During peak sales, OrderService publishes OrderPlaced events.
• InventoryService, PaymentService, and NotificationService all subscribe independently, ensuring real-time processing without blocking the publisher.

2.1.2 Broker (Kafka, RabbitMQ, Others)

Definition:

• Broker is middleware that manages message delivery between publishers and subscribers.
• Ensures reliability, ordering, and durability.

Popular Brokers:

Key Responsibilities:

• Message storage and delivery
• Partitioning for scalability
• Replication for fault tolerance
• Ordering guarantees (per partition/queue)

Challenges:

• Managing large volumes of messages
• Monitoring consumer lag and broker health
• Handling network partitions in distributed systems

Spring Boot Example – Kafka Broker Interaction:

Real-Time Scenario:

• Multiple microservices producing/consuming events during high traffic (Black Friday).
• Kafka partitions and replication ensure no message loss and high throughput.

2.1.3 Message Format (Avro, JSON, Protobuf)

Definition:

• Message format defines how the event payload is structured for producers and consumers.

Common Formats:

Why Schema Matters:

• Ensures consumers can interpret messages correctly
• Supports versioning without breaking consumers
• Reduces payload size for high-throughput systems

Spring Boot + Avro Example:

Producer sending Avro event:

2.1.4 Event Store

Definition:

• Event store is a persistent storage of all events for replay, auditing, and rebuilding state.
• Essential for event sourcing and long-term analytics.

Benefits:

• Replay events to rebuild system state
• Audit trails for compliance
• Late consumers can catch up

Challenges:

• Disk storage management
• Schema evolution for historical events
• Retention policies for large event volumes

Spring Boot Example – Using Kafka as Event Store:

Real-Time Scenario:

• IoT sensors send telemetry to Kafka
• Analytics service replays historical events for ML model training
• New services can start consuming past events without affecting live system

Summary – Messaging Components

Expert-Level Insights:

• Design producers/subscribers to avoid direct dependency.
• Choose message format based on throughput, schema requirements, and consumer compatibility.
• Brokers should support partitioning, replication, and ordering guarantees.
• Event store enables replayable, auditable, and resilient systems.

2.2 Messaging Patterns

2.2.1 Fire-and-Forget

Definition:

• Publisher sends a message and does not wait for any acknowledgment from the broker or consumer.
• Fully asynchronous, non-blocking.

Use Cases:

• Logging events
• Analytics tracking
• Notifications

Benefits:

• Minimal latency for publisher
• High throughput

Challenges:

• No delivery guarantee → message may be lost
• Not suitable for critical business operations

Spring Boot Example – Kafka Fire-and-Forget:

Real-Time Scenario:

• Clickstream analytics: website clicks are published as events for analytics dashboards. Losing a few events is acceptable, so fire-and-forget is optimal.

2.2.2 Request-Reply

Definition:

• Synchronous pattern where publisher sends a request and waits for a response from the consumer.
• Often used for RPC-like interactions over messaging systems.

Use Cases:

• Payment authorization
• Inventory validation
• External API integration via messaging

Benefits:

• Guarantees response
• Can include business logic in reply

Challenges:

• Higher latency
• Blocking publisher until reply is received
• Less scalable for high-throughput scenarios

Spring Boot Example – Kafka Request-Reply:

Real-Time Scenario:

• OrderService requests PaymentService to authorize payment.
• The response determines if order proceeds or fails.

2.2.3 Command vs Event

Command:

• Imperative instruction to perform an action
• Directed to a specific service
• Example: ReserveInventory(orderId)

Event:

• Notification that something happened
• Can be consumed by multiple services
• Example: OrderPlaced

Comparison Table:

Spring Boot Example:

Command:

Event:

Real-Time Scenario:

• OrderPlaced (event) triggers multiple consumers asynchronously
• ReserveInventory (command) is sent to InventoryService which must process it

2.2.4 Event Sourcing

Definition:

• Persist state changes as a sequence of events, instead of storing the current state.
• System state can be reconstructed by replaying events.

Benefits:

• Complete audit trail
• Replay for debugging, analytics, or recovery
• Supports CQRS

Challenges:

• Event schema evolution
• Storage requirements for large event logs
• Rebuilding aggregate state can be compute-intensive

Spring Boot Example:

Real-Time Scenario:

• E-commerce order aggregate rebuilt by replaying OrderPlaced, PaymentCompleted, OrderShipped events.
• Supports audit, rollback, and compensating transactions.

2.3 Delivery Guarantees

2.3.1 At-Most-Once

Definition:

• Message may be delivered once or not at all
• No retries, minimal processing

Use Case:

• Non-critical logging events

Pros:

• Simple, low latency

Cons:

• Messages can be lost

2.3.2 At-Least-Once

Definition:

• Message will be delivered at least once, but duplicates are possible
• Common in Kafka, RabbitMQ

Pros:

• No message lost

Cons:

• Requires idempotent consumers to handle duplicates

Spring Boot Example:

2.3.3 Exactly-Once

Definition:

• Message is delivered once and only once, no duplicates
• Kafka supports EOS (Exactly Once Semantics)

Requirements:

• Idempotent producers
• Transactional writes

Spring Boot Example:

Real-Time Scenario:

• Payment processing and inventory deduction must occur exactly once → ensures no double charge or overbooking

2.3.4 Idempotency & Deduplication

Idempotency:

• Consumer processing multiple times yields the same result
• Critical for at-least-once delivery

Deduplication:

• Remove duplicate messages in consumer or broker

Spring Boot Example – Idempotent Consumer:

2.4 Sync vs Async Communication

2.4.1 Pros and Cons

2.4.2 Hybrid Architectures

Definition:

• Combine sync and async communication in the same system
• Example:
  • Synchronous: OrderService calls PaymentService for immediate authorization
  • Asynchronous: OrderPlaced event triggers AnalyticsService

Benefits:

• Balance responsiveness and reliability
• Optimize critical vs non-critical paths

Spring Boot Real-Time Example:

Real-Time Scenario:

• E-commerce checkout:
  • Synchronous: Payment must succeed immediately
  • Asynchronous: Inventory updates, notifications, analytics

Summary – Phase 2 Messaging Patterns & Guarantees

PHASE 3 – Kafka: Core to Expert

3.1 Kafka Fundamentals

3.1.1 Topics, Partitions, Offsets

Topics:

• Logical channels to which producers publish and consumers subscribe.
• Example: orders-topic, payments-topic.

Partitions:

• Topics are split into partitions for parallelism and scalability.
• Each partition is ordered; messages in a partition have monotonic offsets.

Offsets:

• Unique sequence number for each message in a partition.
• Consumers track offsets to resume consumption.

Impact & Benefits:

• High throughput: partitions allow parallel processing
• Fault tolerance: replicated partitions across brokers
• Ordering guarantee within a partition

Challenges:

• Choosing partition keys wisely for balanced load
• Ensuring order-dependent processing within partition

Spring Boot Example:

3.1.2 Producer API

Definition:

• API used by producers to send messages to Kafka topics.

Key Features:

• Asynchronous send
• Supports callbacks for success/failure
• Can specify partition key

Spring Boot Kafka Producer Example:

Real-World Scenario:

• During peak sales, producer must non-blockingly publish thousands of events per second.

3.1.3 Consumer Groups

Definition:

• Consumers that share a group ID form a consumer group.
• Kafka balances partitions among consumers in the group.

Benefits:

• Horizontal scalability – more consumers → more partitions processed concurrently
• Fault tolerance – if a consumer fails, others take over its partitions

Spring Boot Example:

Real-Time Scenario:

• orders-topic with 12 partitions → 3 consumers in group → each consumer assigned 4 partitions

3.1.4 Kafka Broker Internals

Key Concepts:

• Leader-Follower: Each partition has a leader that handles reads/writes; followers replicate data
• Replication Factor: Number of brokers holding a copy of a partition
• ISR (In-Sync Replica): Followers that are fully synced with leader

Impact:

• High availability and fault tolerance
• Partitioning + replication ensures no single point of failure

Challenges:

• Maintaining consistency during network partitions
• Handling leader elections and failover

3.1.5 ZooKeeper vs KRaft

ZooKeeper (Old):

• Kafka used ZooKeeper to manage broker metadata, leader election, and cluster config

KRaft (Kafka Raft Metadata Mode):

• Native Kafka metadata management
• Removes ZooKeeper dependency
• Simpler setup and native quorum-based consensus

Impact:

• KRaft improves cluster stability and simplifies operations

3.2 Kafka in Spring Boot

3.2.1 spring-kafka Setup

Dependencies:

Configuration:

3.2.2 KafkaTemplate & KafkaListener

KafkaTemplate:

• Sends messages to Kafka

KafkaListener:

• Listens for messages

Example:

3.2.3 Serializers / Deserializers

Key Types:

• StringSerializer / StringDeserializer
• JsonSerializer / JsonDeserializer
• Avro / Protobuf (requires schema registry)

Impact:

• Ensures compatible message encoding/decoding
• Supports schema evolution for long-lived topics

3.2.4 Retry & Dead Letter Topics (DLT)

Retry:

• Attempt to reprocess failed messages multiple times

DLT:

• Failed messages after retries are sent to dead-letter topic for investigation

Spring Boot Example:

Real-Time Scenario:

• During checkout, failed inventory events go to orders-dlt-topic → retried manually or analyzed for failures

3.3 Kafka Advanced

3.3.1 Kafka Streams API

Definition:

• Lightweight library for real-time stream processing within Kafka
• Transform, filter, aggregate, join streams

Example:

Real-Time Use Case:

• Calculate live sales totals per product in a streaming fashion

3.3.2 KSQL / ksqlDB

Definition:

• SQL-like stream processing engine on Kafka
• Enables real-time queries on Kafka streams

Example:

Use Case:

• Real-time fraud detection, analytics dashboards

3.3.3 Kafka Connect (Source/Sink)

Definition:

• Integration framework to move data in/out of Kafka

Examples:

• Source: MySQL → Kafka
• Sink: Kafka → Elasticsearch

Benefit:

• Minimal code required for ETL pipelines
• Supports scaling and monitoring

3.3.4 Schema Registry (Confluent, Apicurio)

Definition:

• Central repository for event schemas
• Ensures compatibility between producers and consumers

Benefits:

• Versioning, evolution, backward/forward compatibility
• Avoids runtime errors due to schema mismatch

3.4 Kafka Ops & Infrastructure

3.4.1 Kafka on Kubernetes

Pattern:

• StatefulSets for brokers
• PersistentVolumeClaims for data
• Operators (Strimzi, Confluent Operator) for management

Benefits:

• Easy scaling
• Automated failover
• Integration with cloud-native environments

3.4.2 Kafka ACLs & Security (SASL, TLS)

Security Features:

• TLS encryption
• SASL authentication
• ACLs for topic/consumer/producer access

Spring Boot Kafka Security Example:

3.4.3 Multi-Cluster Kafka (MirrorMaker)

Definition:

• Replicate topics across clusters for DR, geo-redundancy, or hybrid cloud

Use Case:

• Europe cluster → replicate orders to US cluster for analytics

3.4.4 Monitoring (Cruise Control, Burrow, JMX)

Monitoring Tools:

• Cruise Control: cluster balancing and load management
• Burrow: consumer lag monitoring
• JMX Metrics: broker health, throughput, offsets

Impact:

• Early detection of bottlenecks
• Scaling decisions
• SLA compliance

Summary – Phase 3 Kafka Mastery

Expert-Level Insights:

• Kafka is both messaging and event streaming platform
• Correct partitioning and consumer group design is critical for scalability
• Schema management ensures forward/backward compatibility
• Observability and retries/DLT are essential in production-grade systems

PHASE 4 – RabbitMQ: Core to Expert

4.1 RabbitMQ Basics

4.1.1 Exchanges (Direct, Topic, Fanout, Headers)

Definition:

• Exchanges route messages from producers to queues based on rules.

Types of Exchanges:

Spring Boot Example – Direct Exchange:

Real-Time Scenario:

• PaymentService publishes to orders-exchange → InventoryQueue and AccountingQueue get messages using specific routing keys.

4.1.2 Queues & Bindings

Queues:

• Storage for messages until consumers process them.
• Can be durable, exclusive, or auto-delete.

Bindings:

• Connect exchanges to queues with routing rules.

Impact & Benefits:

• Enables asynchronous processing
• Decouples producer and consumer

Challenges:

• Queue length management for high-throughput systems
• Dead-letter handling for failed messages

Spring Boot Example – Queue Binding:

4.1.3 Message Acknowledgements

Definition:

• Ensures messages are processed reliably
• Consumers ack messages after successful processing

Modes:

• Auto Ack – message considered consumed immediately
• Manual Ack – consumer explicitly acknowledges

Spring Boot Example:

Real-Time Scenario:

• During Black Friday, messages failing due to DB deadlocks are requeued for retry.

4.2 Spring Boot with RabbitMQ

4.2.1 spring-amqp Configuration

Dependencies:

Configuration Example:

4.2.2 Message Listeners & Templates

RabbitTemplate:

• Used for sending messages
• Supports synchronous and asynchronous send

RabbitListener:

• Processes messages from queues asynchronously

Example:

4.2.3 Retry Queues & Dead Letter Exchange (DLX)

Retry Queues:

• Temporary queue where failed messages are retried after delay

DLX:

• Dead-letter exchange receives messages that cannot be processed

Spring Boot Example:

Real-Time Scenario:

• Payment failed due to insufficient funds → message moved to DLX → manual investigation.

4.3 RabbitMQ Advanced

4.3.1 Federation vs Shovel

Federation:

• Connects queues across different RabbitMQ brokers
• Allows multi-datacenter replication

Shovel:

• Continuously moves messages from source queue to destination queue

Use Case:

• Multi-region applications → replicate events across clusters

4.3.2 Priority Queues, TTL, Lazy Queues

Priority Queues:

• Messages processed by priority

TTL (Time-To-Live):

• Messages expire after configured time

Lazy Queues:

• Keep messages on disk, reducing memory usage

Spring Boot Example – TTL & DLX:

4.3.3 Streams (New Feature)

Definition:

• RabbitMQ Streams support high-throughput, persistent log-style messaging
• Alternative to Kafka for stream processing

Use Case:

• IoT telemetry or clickstream ingestion

4.4 RabbitMQ Security & Operations

4.4.1 TLS & User Permissions

TLS:

• Encrypts traffic between producer/consumer and broker

User Permissions:

• Fine-grained permissions: configure who can read/write to queues/exchanges

Spring Boot Example:

4.4.2 Clustering & High Availability

Clustering:

• Multiple brokers form cluster → queues can be mirrored

High Availability Queues:

• Mirrored queues survive broker failures
• Consumers automatically reconnect

Real-Time Scenario:

• E-commerce system → HA queues for orders → system continues to process even if a broker crashes

4.4.3 Monitoring (Prometheus, Grafana)

Metrics to Monitor:

• Queue length
• Consumer rate
• Message TTL / Dead-letter count
• Node health

Tools:

• Prometheus RabbitMQ Exporter
• Grafana dashboards

Benefit:

• Proactive alerting, scaling decisions, SLA compliance

Summary – Phase 4 RabbitMQ Mastery

Expert Insights:

• Exchanges + bindings = flexible routing
• DLX & retries = reliable production processing
• Streams feature = high-throughput event streaming
• Clustering + HA queues = resilient system
• Monitoring = early detection & scaling

PHASE 5 – Cloud-Based EDA (AWS, Azure, GCP)

5.1 AWS Event Services

• 5.1.1 Amazon MSK (Managed Kafka)
• 5.1.2 SQS, SNS, EventBridge
• 5.1.3 Kinesis Data Streams vs Kafka

5.2 Azure Event Services

• 5.2.1 Azure Event Grid
• 5.2.2 Azure Service Bus
• 5.2.3 Azure Event Hubs

5.3 GCP Event Services

• 5.3.1 GCP Pub/Sub
• 5.3.2 GCP Eventarc
• 5.3.3 Integration with Cloud Functions

5.4 Hybrid & Multi-Cloud EDA

• 5.4.1 Kafka Connect to Cloud
• 5.4.2 Self-hosted Kafka + Cloud Pub/Sub
• 5.4.3 Cloud-to-Cloud bridges

PHASE 5 – Cloud-Based EDA (AWS, Azure, GCP)

5.1 AWS Event Services

5.1.1 Amazon MSK (Managed Kafka)

Definition:

• AWS MSK = Managed Kafka service
• Handles cluster provisioning, maintenance, scaling, and monitoring

Benefits:

• Fully managed → reduces operational overhead
• Integrated with CloudWatch, IAM, VPC
• Supports Kafka features: partitions, replication, consumer groups

Challenges:

• Cost at large scale
• Limited control over broker tuning compared to self-hosted Kafka

Integration with Spring Boot:

Real-Time Scenario:

• E-commerce platform → MSK ingests order events → consumers: inventory, analytics, shipping services

5.1.2 SQS, SNS, EventBridge

Integration Example – SNS + SQS:

• OrderService publishes OrderPlaced to SNS topic
• Multiple SQS queues subscribed: InventoryQueue, BillingQueue

Spring Boot Example – SQS:

Real-Time Scenario:

• Cloud-native EDA → SNS fan-out notifications → SQS queues decouple microservices

5.1.3 Kinesis Data Streams vs Kafka

Kinesis Data Streams:

• Fully managed streaming service
• AWS-native alternative to Kafka

Comparison:

Integration:

• Spring Boot → Kinesis Client Library (KCL)
• Similar to Kafka consumer pattern

5.2 Azure Event Services

5.2.1 Azure Event Grid

Definition:

• Serverless event routing service
• Publishes events to multiple endpoints (HTTP, Azure Functions, Logic Apps)

Use Case:

• Blob created → trigger data pipeline
• Application events → multiple microservices

Integration Example:

5.2.2 Azure Service Bus

Definition:

• Fully managed message broker
• Supports queues & topics (pub/sub)

Features:

• FIFO via sessions
• Dead-letter queues
• Scheduled delivery

Integration – Spring Boot:

5.2.3 Azure Event Hubs

Definition:

• High-throughput event ingestion platform
• Designed for streaming and analytics pipelines

Use Case:

• IoT telemetry, clickstream, log aggregation

Spring Boot Integration:

• Use Azure Event Hubs SDK → EventHubConsumerAsyncClient
• Supports checkpointing similar to Kafka offsets

5.3 GCP Event Services

5.3.1 GCP Pub/Sub

Definition:

• Managed messaging service, supports pub/sub

Features:

• Push/Pull subscription
• At-least-once delivery
• Dead-letter topics

Spring Boot Integration:

Real-Time Scenario:

• Multi-region e-commerce → Pub/Sub ingests orders → triggers billing, analytics

5.3.2 GCP Eventarc

Definition:

• Event routing service for GCP
• Routes events to Cloud Run, Functions, Workflows

Use Case:

• GCP-native serverless EDA

5.3.3 Integration with Cloud Functions

• Cloud Functions can consume events from Pub/Sub, Eventarc, or storage events
• Allows serverless microservices in event-driven workflows

Spring Boot Integration Pattern:

• Use Pub/Sub client → invoke Spring Boot services via HTTP/Webhook

5.4 Hybrid & Multi-Cloud EDA

5.4.1 Kafka Connect to Cloud

Definition:

• Use Kafka Connect to integrate self-hosted Kafka with cloud services (S3, EventHub, Pub/Sub)

Use Case:

• On-prem Kafka → replicate to AWS S3 or Azure Event Hubs

Example:

• Configure sink connector for Event Hubs or Pub/Sub
• Messages automatically streamed with minimal code

5.4.2 Self-Hosted Kafka + Cloud Pub/Sub

• Use Kafka Connect + Pub/Sub connector to replicate Kafka topics
• Enables hybrid cloud workflows
• Useful for multi-region or multi-cloud deployments

Real-Time Scenario:

• On-prem order events → Kafka → GCP Pub/Sub → Cloud Functions → Analytics

5.4.3 Cloud-to-Cloud Bridges

• Connect Kafka/MSK ↔ Azure Event Hubs ↔ GCP Pub/Sub
• Patterns:
  • Kafka MirrorMaker → replicate topics across clouds
  • Cloud-native connectors → S3, Blob storage, Pub/Sub bridges

Benefits:

• High availability across cloud providers
• Centralized analytics pipelines
• Disaster recovery support

Summary – Phase 5 Cloud EDA

Expert Insights:

• Managed cloud services reduce operational burden
• Kafka + cloud bridges allow hybrid/multi-cloud event-driven workflows
• Spring Boot applications can integrate with any cloud messaging service using SDKs, connectors, or HTTP/webhooks
• DLQs, retries, and idempotency patterns remain critical for reliable systems

PHASE 6 – Design & Architecture

6.1 Event-Driven Microservices

6.1.1 Order → Payment → Shipping Pipeline

Flow:

1. OrderService publishes OrderPlaced event
2. PaymentService subscribes → charges payment → publishes PaymentCompleted
3. ShippingService subscribes → ships order → publishes OrderShipped

Benefits:

• Loose coupling
• Asynchronous, scalable
• Real-time event tracking

Challenges:

• Failure in one service → compensating actions required
• Ordering guarantees across services

Spring Boot Example:

Real-Time Scenario:

• E-commerce microservices pipeline → each service independently scales → system is resilient

6.1.2 Choreography vs Orchestration

Spring Boot Tip:

• Orchestration → implement Saga Orchestrator using Spring State Machine or workflow engine (Temporal/Zeebe)

6.1.3 Saga Pattern

Definition:

• Manage distributed transactions via local transactions + compensating transactions

Example – Payment Failure:

• OrderPlaced → Payment fails → OrderCancelled event → Inventory rolled back

Spring Boot Implementation:

Real-Time Scenario:

• Airline booking: Seat reserved → payment fails → release seat

6.2 DDD with EDA

6.2.1 Bounded Contexts

Definition:

• Define domain boundaries where a model applies

EDA Integration:

• Each bounded context publishes domain events → decoupled communication

Example:

• InventoryContext → StockReserved
• OrderContext → OrderPlaced

6.2.2 Event Storming

Definition:

• Workshop technique to discover domain events and flows

Benefits:

• Identify aggregates, commands, and events
• Align dev & business understanding

Tip:

• Map events → services → topics → consumers

6.2.3 Aggregates & Events

Definition:

• Aggregate = cluster of related entities
• Events capture state changes in aggregate

Example:

Benefit:

• Supports event replay, auditing, CQRS

6.3 Event Replay & Time Travel

6.3.1 Immutable Event Logs

• Store all events immutably (Kafka, Event Store)
• Rebuild system state at any time

Real-Time Scenario:

• Replay 1-day worth of failed order events → restore analytics

6.3.2 Event Versioning

Problem:

• Schema changes break consumers

Solution:

• Maintain backward-compatible versions
• Use Schema Registry / versioned topics

Spring Boot + Kafka Example:

PHASE 7 – Testing, Observability, and Reliability

7.1 Testing

7.1.1 Unit vs Integration vs Contract Testing

7.1.2 Embedded Kafka / RabbitMQ

Purpose:

• Run in-memory broker during tests

Spring Boot Example:

7.1.3 Pact.io & Spring Cloud Contract

• Pact.io → consumer-driven contracts
• Spring Cloud Contract → generate stubs, validate contracts

Benefit:

• Detect breaking changes early
• Ensure EDA reliability in multi-service systems

7.1.4 Chaos Testing

• Introduce faults, latency, broker failures
• Verify system resilience & retries

Tool:

• Chaos Monkey for Spring Boot, Gremlin

7.2 Observability

7.2.1 Distributed Tracing (Zipkin, Jaeger, OpenTelemetry)

• Trace event flow across microservices
• Measure latency & bottlenecks

Spring Boot Integration:

• spring-cloud-sleuth + Zipkin/Jaeger → auto-traces Kafka/RabbitMQ messages

7.2.2 Metrics with Prometheus + Grafana

• Track throughput, lag, consumer processing rates
• Dashboards for SLA monitoring

Metrics Example:

• Kafka: messages in/out, lag per partition
• RabbitMQ: queue length, consumer count, message rate

7.2.3 Kafka Lag Monitoring (Burrow, Cruise Control)

• Burrow: monitors consumer lag
• Cruise Control: cluster load balancing & rebalance

7.2.4 RabbitMQ Queue Monitoring

• Monitor queue depth, consumer processing rate, DLX messages
• Prometheus exporter → Grafana dashboard

7.3 Reliability

7.3.1 Retry Logic (Exponential Backoff)

• Retry failed messages after increasing delay
• Prevent system overload

Spring Boot Example:

7.3.2 Dead Letter Topics / Exchanges

• Failed messages moved to DLQ / DLX for investigation
• Essential for at-least-once delivery systems

7.3.3 Poison Message Handling

• Messages that always fail → isolated, analyzed, or discarded
• Avoid blocking the queue

Spring Boot Pattern:

• Detect repeated failures → send to DLQ
• Alert team for manual remediation

Real-World Takeaway:

• Production-grade EDA = resilient, observable, testable, and versioned
• Proper patterns + monitoring + retries + DLQs make microservices reliable and scalable

PHASE 8 – Security & Compliance

8.1 Kafka Security

8.1.1 TLS, SASL, ACLs

TLS (Transport Layer Security):

• Encrypts data in transit between brokers, producers, and consumers
• Prevents man-in-the-middle attacks

SASL (Simple Authentication and Security Layer):

• Provides authentication mechanisms: PLAIN, SCRAM-SHA-256, SCRAM-SHA-512, GSSAPI (Kerberos)

ACLs (Access Control Lists):

• Control who can read/write to topics, consumer groups, or clusters

Kafka Broker Config Example:

Spring Boot Integration Example:

Real-World Scenario:

• Multi-tenant Kafka cluster → each microservice has separate ACLs, TLS for encryption → prevents unauthorized access

8.1.2 Authentication & Authorization

• Authentication: Identify clients using SASL, OAuth2, or mTLS certificates
• Authorization: ACLs to control topic read/write and consumer group management

Impact:

• Prevents accidental or malicious data leaks
• Enables multi-tenant security compliance

8.1.3 Encryption at Rest & In Transit

At Rest:

• Enable disk-level encryption (EBS, S3 for backups, etc.)
• Protects data if disks are compromised

In Transit:

• TLS for all broker-client communication
• Required for PCI DSS / HIPAA compliance

8.2 RabbitMQ Security

8.2.1 User Roles & TLS

User Roles:

• Control access to exchanges, queues, vhosts
• Predefined roles: administrator, monitoring, management

TLS:

• Encrypt communication between broker, producer, consumer
• Supports mutual TLS for client authentication

Spring Boot Example:

8.2.2 Plugin-Based Authentication

• RabbitMQ supports external authentication plugins:
  • LDAP
  • OAuth2
  • Custom plugins for enterprise auth

Impact:

• Centralized auth management
• Easier compliance with corporate policies

8.3 Secure Payload Handling

8.3.1 JWT in Events

Use Case:

• Encode user identity or claims in event payload

Benefits:

• Microservices can authorize without querying central auth service

Spring Boot Example:

8.3.2 Encrypted Event Data

AES / RSA Encryption:

• Encrypt sensitive fields before sending events

Example:

• Consumers decrypt using shared secret

Benefit:

• Protects sensitive PII / financial data even if message broker is compromised

8.3.3 Data Masking, GDPR / PII

Patterns:

• Mask fields like SSN, credit card, email before publishing events
• Only authorized consumers can access full data

Example:

Compliance:

• Supports GDPR, HIPAA and other regulations
• Event stores should avoid storing raw PII unless encrypted

Phase 8 Security & Compliance

Expert Insights:

• Security must cover broker, transport, and payload
• Authorization + encryption + auditing ensures production-grade compliance
• For multi-cloud/hybrid EDA, always enforce consistent security policies

PHASE 9 – CI/CD, DevOps & Infrastructure

9.1 Infrastructure as Code (IaC)

9.1.1 Terraform for Kafka & RabbitMQ

Definition:

• Use Terraform scripts to provision Kafka, RabbitMQ clusters, and related resources on cloud or on-prem.

Benefits:

• Version-controlled infrastructure
• Repeatable & automated deployment
• Reduces human errors

Kafka Example (AWS MSK):

RabbitMQ Example (VM or K8s):

9.1.2 Helm Charts & Kustomize (K8s)

• Helm: Package RabbitMQ/Kafka deployments as charts → easy upgrades & rollback
• Kustomize: Overlay environment-specific configs → dev, staging, prod

Example – Helm Kafka:

Benefit:

• Rapid provisioning & scaling in Kubernetes
• Infrastructure version control integrated with CI/CD

9.2 Kafka DevOps

9.2.1 GitOps for Topic Management

Concept:

• Define Kafka topics as code in Git → automated sync to clusters

Tools:

• Strimzi Topic Operator, Terraform Kafka provider

Example:

Benefit:

• Track topic configuration changes via Git
• Avoid manual misconfigurations in production

9.2.2 Confluent Operator

• Manages Kafka clusters on Kubernetes
• Automates: provisioning, upgrades, rolling restarts, monitoring
• Enables multi-cloud Kafka deployments

9.3 RabbitMQ DevOps

9.3.1 RabbitMQ on Kubernetes

• Deploy HA RabbitMQ clusters using StatefulSets
• Configure persistent storage, headless services for clustering

Example – RabbitMQ StatefulSet YAML:

9.3.2 RabbitMQ Operator

• Automates cluster creation, HA configuration, user management
• Provides CRDs for queues, exchanges, policies

Benefit:

• Reduces manual Kubernetes operations
• Ensures consistent production-ready RabbitMQ clusters

9.4 Deployment Strategies

9.4.1 Blue-Green Deployment

• Blue: current live environment
• Green: new version deployed
• Switch traffic to Green after validation

Benefits:

• Zero-downtime deployment
• Easy rollback

Kafka/RabbitMQ Considerations:

• Consumers may need offset reset or replay during deployment

9.4.2 Canary Releases for Event Consumers

• Deploy new consumer versions gradually
• Start with small subset → monitor metrics → full rollout

Spring Boot + Kafka Example:

• Deploy ConsumerV2 with topic subscription → only consumes 10% of partitions initially
• Gradually increase partitions assigned using ConsumerGroup rebalance

Benefits:

• Minimize impact of bugs in new consumer
• Safely validate performance under load

Phase 9 CI/CD & DevOps

Expert Takeaways:

• Event-driven systems require careful infra automation
• GitOps + Operators = reliable cluster management
• Canary & Blue-Green ensure resilient deployments of consumers & producers

PHASE 10 – Real-Time Streaming & Analytics

10.1 Streaming Architectures

10.1.1 Kafka Streams

Definition:

• Kafka Streams = lightweight Java library for real-time stream processing
• Consumes, processes, and produces data directly from Kafka topics

Benefits:

• Fully integrated with Kafka → no separate cluster required
• Supports stateful transformations, aggregations, joins

Spring Boot Integration Example:

Real-World Scenario:

• Streaming orders → filter high-value orders → trigger fraud detection microservice

10.1.2 Apache Flink

Definition:

• Distributed stream processing framework
• Supports event time processing, windowing, exactly-once semantics

Benefits:

• Stateful, low-latency processing
• Large-scale analytics pipelines

Use Case:

• Clickstream analytics → real-time dashboards
• IoT telemetry → anomaly detection

10.1.3 Spark Streaming

Definition:

• Micro-batch stream processing on Apache Spark
• Good for batch + streaming hybrid pipelines

Benefits:

• Integrates with HDFS, S3, Kafka
• Fault-tolerant, scalable

Use Case:

• Aggregated metrics reporting
• Log analytics

10.2 Stream Processing Concepts

10.2.1 Tumbling / Sliding Windows

Kafka Streams Example:

10.2.2 Event-Time vs Processing-Time

• Event-Time: Timestamp embedded in event → correct ordering & late arrival handling
• Processing-Time: Timestamp when event reaches processing node → faster, less accurate

Impact:

• Event-time = more accurate analytics for out-of-order events
• Processing-time = simpler, but may misalign aggregates

10.2.3 Watermarks

• Used to handle late-arriving events in event-time processing
• Defines how late events are tolerated

Example in Flink:

Benefit:

• Ensures accurate windowed aggregations despite delayed events

10.3 Real-World Streaming Project – Example Experience

Scenario:

• Company: E-commerce platform
• Goal: Real-time fraud detection for orders
• Architecture:
  1. Kafka topics for orders-topic, payments-topic
  2. Kafka Streams application → filters high-risk orders, enriches with user data
  3. Stream output → fraud-alerts-topic → Notification microservice

Challenges & Solutions:

• Late events: Used event-time processing with watermarks
• High throughput: Partitioned Kafka topics, scaled Kafka Streams app horizontally
• Stateful processing: Managed state store for user order history

Outcome:

• Orders analyzed within milliseconds
• Fraud alerts triggered real-time, reducing losses by ~15%

Spring Boot + Kafka Streams:

• @KafkaStreamsDefaultConfiguration for Kafka Streams binder
• StreamsBuilderFactoryBean to define topology
• Error handling → DLQ topics for failed message processing

Phase 10 Streaming & Analytics

Expert Takeaways for Interviews:

• Emphasize event-time processing, watermarks, stateful stream processing
• Explain scaling, partitions, throughput handling
• Share real project experience → shows applied expertise

PHASE 11 – Capstone Projects

11.1 Real-World Systems

11.1.1 E-Commerce Order Pipeline

Scenario:

• Full order-to-shipping pipeline in an e-commerce system
• Microservices: OrderService → PaymentService → InventoryService → ShippingService
• Event-Driven Architecture with Kafka topics:
  • orders-topic, payments-topic, shipping-topic

Spring Boot Implementation:

Challenges & Solutions:

• Retry failures: Exponential backoff, DLQs
• Saga pattern: Compensating transactions if payment fails
• Monitoring: Prometheus + Grafana dashboards for topic lag

Impact:

• Real-time order processing
• Scalable & fault-tolerant

11.1.2 Real-Time Fraud Detection

Scenario:

• Detect fraudulent orders as they are placed
• Kafka Streams filters high-value or suspicious patterns
• State store keeps user history for anomaly detection

Spring Boot + Kafka Streams:

Challenges:

• Handling late-arriving events → used event-time & watermarks
• Scaling for high traffic → horizontal scaling of Kafka Streams
• State management → RocksDB for local state store

Impact:

• Reduced financial losses
• Real-time alerts → operational efficiency

11.1.3 IoT Sensor Network with Kafka Streams

Scenario:

• IoT devices send telemetry data → Kafka ingestion
• Streams processing → aggregate sensor readings, detect anomalies

Streaming Concepts Used:

• Tumbling windows → average temperature every 5 minutes
• Sliding windows → moving average for trend detection
• Event-time processing → correct out-of-order messages

Spring Boot + Kafka Streams Example:

Impact:

• Real-time monitoring of sensor health
• Early detection of anomalies

11.1.4 Cross-Region Event-Driven System (Hybrid Cloud)

Scenario:

• Global company → Kafka cluster on-premises + MSK on AWS + Pub/Sub on GCP
• Replicate topics across regions using Kafka Connect / MirrorMaker
• Multi-cloud event processing

Architecture Patterns:

• Kafka Connect → synchronize topics across cloud providers
• Event consumers in local regions → reduced latency
• Central monitoring → Grafana + Burrow for Kafka lag

Challenges & Solutions:

• Latency across regions: Use partitioned topics + local consumers
• Security: TLS + SASL + IAM roles for cross-cloud auth
• Disaster Recovery: MirrorMaker ensures DR across clouds

Impact:

• Low-latency global event processing
• Highly available, fault-tolerant hybrid cloud architecture

Capstone  Takeaways
